The residual phosphorus is removed by means of a coagulant dosed througt of ap- propriate dosing pumps directly in the oxidation tank, before the final sedimentation treatment, The chemical precipitation allows the abatement of the residual phospho- rus, which is deposited by gravity on the bottom of the final sedimentation tank.

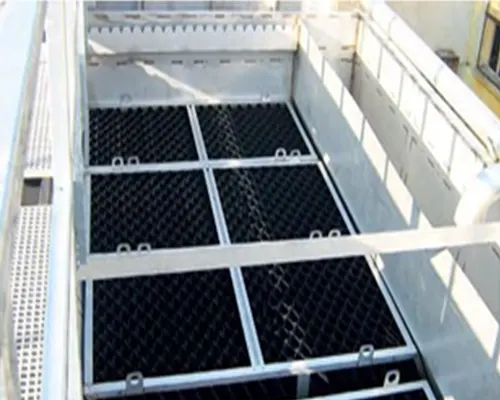

The slurry aerated in the oxidation tank is sent, by gravity, to the final clarifier. The clar- ifier is a tank of particular geometry that, in quiet conditions, allows the sedimentation of the mud flakes and therefore a separation between clear waters and sludge. The passage of sewage through the channels of the lamellar pack, with an ascending flow at low speed, favors the sedimentation of suspended substances which, by gravity, precipitate to the bottom while the slurry thus clarified, reaches the surface of the basin to be subsequently discharged.
The activated sludge, collected at the bottom of the sedimentation section, is sent back to the oxidation phase, through an electric pump.
The extraction of the sludge is carried out through a specific manual valve, which is present on the sludge recirculation line.

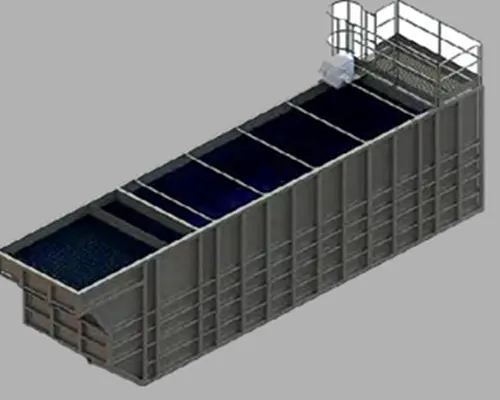

These wastewater treatment plants type EMS Water Technology with MBBR technology are designed to be easily transported on the Italian territory and abroad since the dimensions are compatible both with road transport and in standard containers or flat racks.
| DESCRIPTION | UNITS OF MEASUREMENT | EMBBR 250 | EMBBR 500 | EMBBR 1000 | EMBBR 1500 | EMBBR 2000 | EMBBR 2500 |
|---|---|---|---|---|---|---|---|
| Population equivalents, Ae | 250 | 500 | 1000 | 1500 | 2000 | 2500 | |
| Daily flow, Qd | Mc/d | 50 | 100 | 200 | 300 | 400 | 500 |
| DBO 5 | kg/d | 15 | 30 | 60 | 90 | 120 | 150 |
| Installed power | kW | 7.5 | 9.0 | 12.5 | 17.5 | 20.0 | 23.5 |
| Dimensions in plan | m | 7×5 | 9×5 | 13×6 | 17×6 | 12×8 | 16×8 |
| Pipe diameter in/out | DN | DN 100 | DN 100 | DN 150 | DN 200 | DN 200 | DN 200 |
The values shown are for informational purposes only. The company EMS Water Technology S.r.l. reserves the right to change them at any time.
Design and construction of industrial wastewater treatment using the latest technologies using available on the market systems. Processes of chemical-physical biological type, flotation, filtration, with traditional and cera- mic membranes, reverse osmosis and ultrafiltration. The installations are designed using the most innovative highly automated processes, par- ticularly :- chemical-physical treatment- pressurised floatation- rapid filtering under pressure- ionic exchange treatment- ultra-filtering and reverse osmosis, EDI- traditional biological oxidation with active sludge and adherent biomass- biological oxidation type SBR( Sequencing Batch Reactors)- biological oxidation type MBR( Membrane Bio Reactors)- biological oxidation type MBBR (Moving Bed Biofilm Reactors )
Operation :- The heart of the water treatment system is reverse osmosis and is it designed to treat raw water coming directly from the sea or from wells located near the beaches. Con- tainerized drinking water systems EMS Water Technology SWRO series are complete with: • Submersible electric pump with flexible system supply pipe •Pre-treatment and prefiltration of raw water •Reverse osmosis unit RO •Post-treatment of mineralization and disinfection •PLC control panel with remote control system via GSM

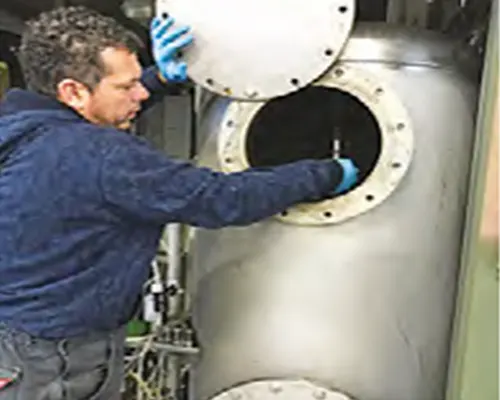

EMS WATER TECNOLOGY Srl grazie ad una esperienza ultraventennale nelle costruzio- ne e gestione di impianti di trattamento acque è in grado di assicurare un corretto servizio di controllo del processo depurativo, la manutenzione di tutti i componenti elettromeccanici costituenti l’impianto eseguita con personale esperto e professionale.
EMS WATER TECNOLOGY Srl opera su tutte le tipologie di impianti di depurazione sia di acque reflue cilvili che industriali, impianti di potabilizzazione e ad osmosi inversa, in particolare per acque di mare, con personale adeguato per qualsiasi trasferta all’estero, anche con specifici software per il telecontrollo da remoto via GSM o SAT.
Con l ‘obiettivo di garantire un adeguato servizio al Cliente EMS WATER TECNOLOGY Srl è in grado di effettuare corsi di formazione per tecnici operatori locali in campo; con un accurato servizio di ricambistica con tempi ridotti di consegna.
