| REVERSE OSMOSIS PLANT CHARACTERISTICS | |||
|---|---|---|---|
| DATA | UNIT | EMS-RO-SW-45 | EMS-RO-SW-90 |
| Sea Water Inlet Flow Rate (*) | m³/h | 4 (*) | 8 (*) |
| Sea Water Salinity | ppm of TDS | 35,000 | 35,000 |
| Membrane Feed Pressure | Bar | 65 – 67 | 63 – 65 |
| Permeate Production | m³/day | 45 (2 m³/h) | 90 (4 m³/h) |
| Permeate Salinity | ppm of TDS | 600 – 800 (approx) | 600 – 800 (approx) |
| Other permeate Characteristics | WHO parameters | WHO parameters | |
| R.O. Recovery | % | 53 (+/-) | 53 (+/-) |
| Power Consumption | Kwh/m³/h | 4,2 – 4,4 (**) | 4,2 – 4,4 (**) |

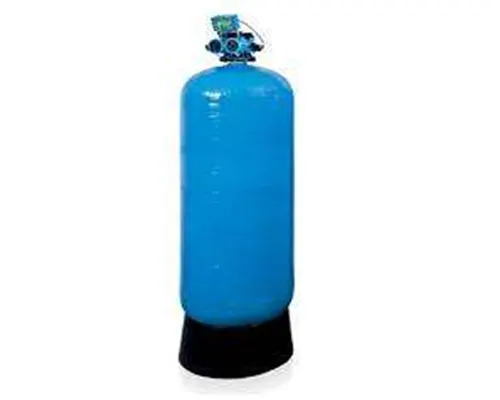

| Tab- B1 | Sand Filter for Turbidity & Iron Removal | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 1 | 1 |
| Service Flow Rate | 4 m³/h | 8 m³/h |
| Maximum Flow Rate | 6 m³/h | 12 m³/h |
| Diameter mm | 770 (30”) | 1.074 (42”) |
| Total Higher mm | 1.975 | 2.015 |
| Material | FRP | FRP |
| Filtration Bed | Pure quartz and catalytic media (for iron remov.) | Pure quartz and catalytic media (for iron remov.) |
| Filtering Bed Higher | 90 cm | 90 cm |
| Media total weight | Kg. 850 | Kg. 950 |
| Multiport, Automatic Electronic Valve | P.P. top mounted | P.P. top mounted |
| Connection Piping | DN 32 (1”1/4) | DN 40 (1”1/2”) |

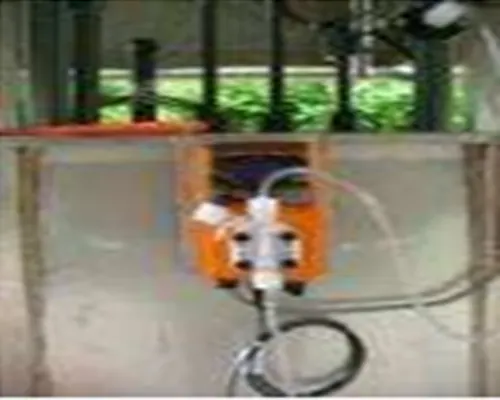

| Tab- B2 | CHEMICAL DOSING SYSTEMS | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 4 | 4 |
| Dosing Product |
- Antiscalant - SMBS - Sodium Hypochl. - pH correct. (final) |
- Antiscalant - SMBS - Sodium Hypochl. - pH correct. (final) |
| Service Flow Rate | 0 – 1 lt./h | 0 – 2 lt./h |
| Pump Type | Electronic | Electronic |
| Material | PP/PVDF | PP/PVDF |
| Motor | 1 x 220V 50Hz | 1 x 220V 50Hz |

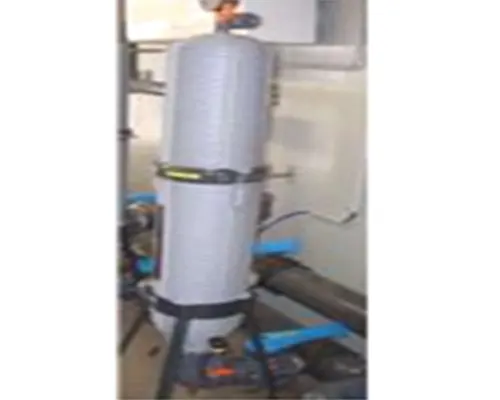

| Tab- B3 | 5 µ CARTRIDGE FILTERS | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 1 | 1 |
| Service Flow Rate | 4 m³/h | 8 m³/h |
| Maximum Flow Rate | 6 m³/h | 12 m³/h |
| Dimensions | 220 x 760 mm | 220 x 1015 mm |
| Material | FRP | FRP |
| Max Pressure Service | 6 Bar | 6 Bar |
| Accessories | ||
| Manual valves | DN 32 (1”1/4) | DN 40 (1”1/2”) |
| Pressure gauge | N° 1 | N° 1 |

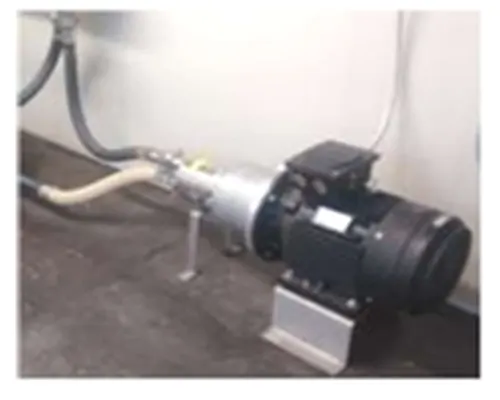

| Tab- B4 | R.O. HIGH PRESSURE FEEDING PUMP | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 2 (*) | 2 (*) |
| Service Flow Rate | 4 m³/h (66,8 lt/min) | 8 m³/h (134 lt/min) |
| Max Pressure Service | 70 Bar | 70 Bar |
| Type | 9 plunger | 9 plunger |
| Material | S.S. DUPLEX | S.S. DUPLEX |
| Motor Power | 11 kW | 18,5 kW |
| Accessories | ||
| Manual valves | DN 32 PN 100 | DN 40 PN 100 |
| Press. gauge 0-100 Bar | N° 1 | N° 1 |

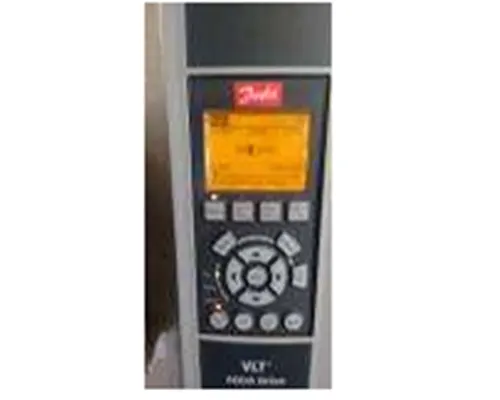

| Tab- B5 | INVERTER FOR HIGH PRESSURE PUMP | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 1 | 1 |
| Inverter Size | 11 kW | 18,5 kW |
| Inverter Installation | On the skid | On the skid |
| Inverter Protection | IP 54 | IP 54 |
| IN/OUT Signals | 4-20 mA | 4-20 mA |
| Regulation Field | 30 – 50 Hz | 30 – 50 Hz |
| Power Feed | 400V-50Hz. | 400V-50Hz. |

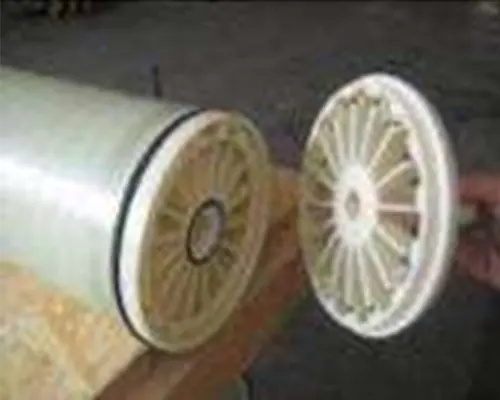

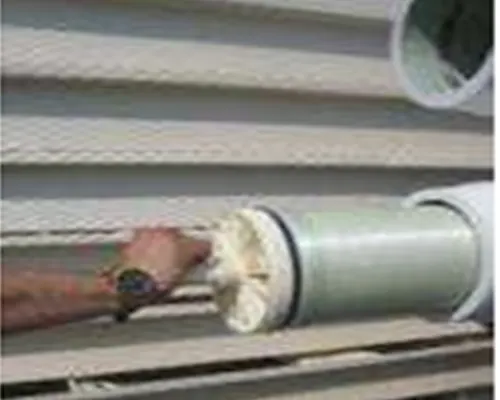

| Tab- B6 | R.O. MEMBRANES | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 4 | 9 |
| Size / Length | 8” x 40” | 8” x 40” |
| Type | S.W. Low Energy | S.W. Low Energy |
| Operating Temperature | 5 – 45 °C | 5 – 45 °C |
| Max Working Pressure | 82 Bar (1.200 psi) | 82 Bar (1.200 psi) |

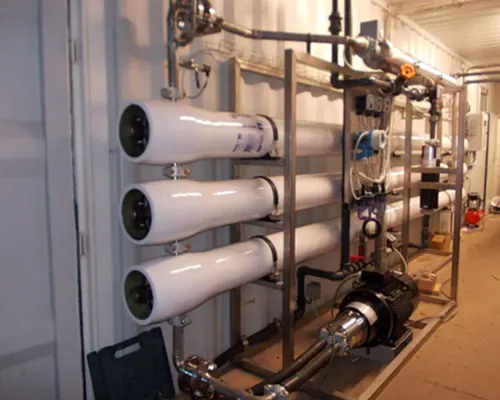

| Tab- B7 | R.O. VESSELS | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 2 | 3 |
| Places Number | 2 x 8” | 3 x 8” |
| Material | FRP | FRP |
| Operating Temperature | 5 – 45 °C | 5 – 45 °C |
| Max Working Pressure | 82 Bar (1.200 psi) | 82 Bar (1.200 psi) |

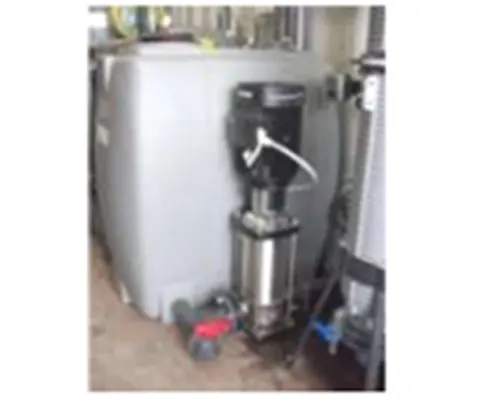

| Tab- B9 | R.O. CLEANING SYSTEM | |
|---|---|---|
| R.O. Unit → | EMS-RO-SW 45 | EMS-RO- SW 90 |
| Quantity n° | 1 | 1 |
| Cleaning Tank Capacity | 300 lt. | 500 lt. |
| Tank Material | HDPE | HDPE |
| Cleaning Pump | 2 m³/h H=30 mt. | 4 m³/h H=30 mt. |
| Material | S.S. AISI 316 | S.S. AISI 316 |
| Motor Power | 0,75 kW | 1,1 kW |
| Accessories | ||
| Manual valves | DN 25 PN 16 | DN 25 PN 16 |
